Continuous profiling is a multi-dimensional performance optimization technique where web applications are monitored and profiled in real-time. Lightweight and scalable, it’s tailored for holistic application oversight. Continuous profiling collects performance data continuously, enabling developers to gain deep insights into their application’s behavior, identify bottlenecks, and optimize code for better performance and resource utilization. This proactive approach allows for quicker identification and resolution of performance issues, ensuring the smooth running of software in live environments.

​
Continuous profiling on Upsun

Upsun Continuous Profiling is powered by Blackfire. To access Continuous Profiling in the Console:
  1. Open your project in the Console.
  2. Select Apps and Services.
  3. Select your app.
  4. Click Profiling.

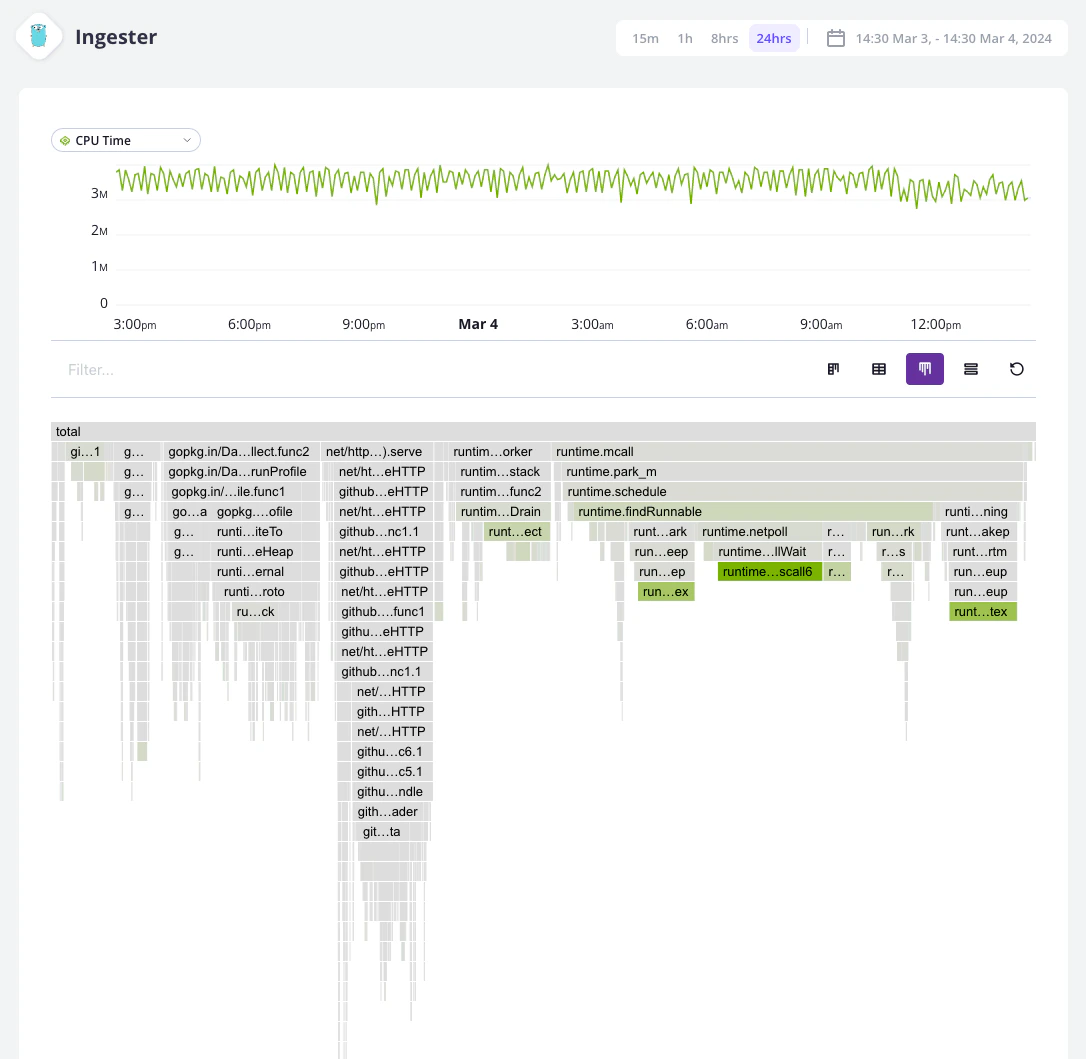

The Continuous Profiling dashboard lets you visualize the profiling data of a specific application. It is composed of several views: flame graph, table view, and a split view combining the flame graph and table views. Each view helps make sense of the profiling data for the selected dimension and time frame. The available dimensions vary with the runtime profiled.

​

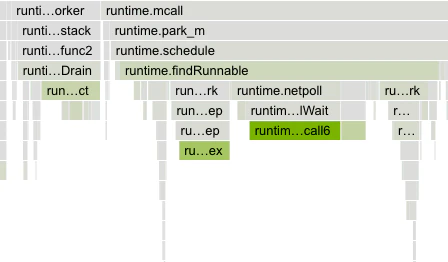

Color-coded node dimensions

Upsun continuous profiling dashboard employs a color-coded system to represent each dimension, ensuring consistency across different runtimes. The intensity of a node’s background color is directly proportional to the resources it consumes. As resource consumption increases, so does the vibrancy of the background color. This visual representation pinpoints application areas that may require optimization. Routes The contrast between the dimension color and the grayscale of regular nodes has been designed to ensure accessibility for all users and allow colorblind users to benefit from this feature.

​
Flame graph

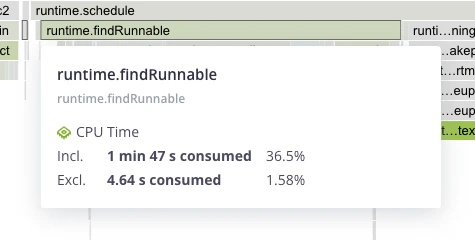

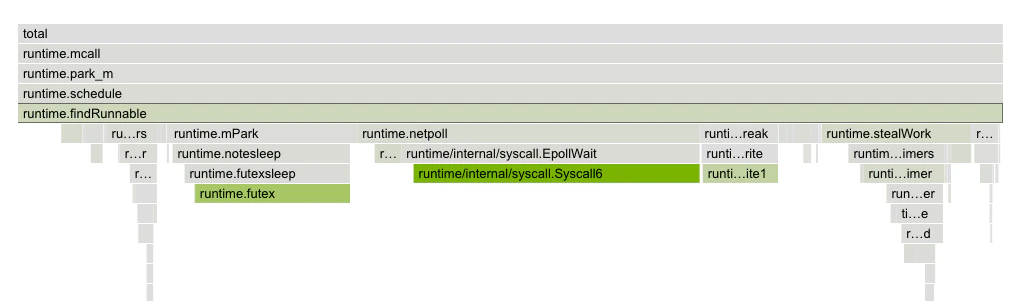

The flame graph is a hierarchical visualization of the contribution of the different function calls to the selected dimensions. Flame graphs are effective in identifying performance issues and understanding the behavior of software during execution. Routes Rectangles in a flame graph are called frames. Each frame represents a function, arranged vertically (y-axis) to show the sequence of method calls. The width of a frame relates to its resource usage. It helps pinpoint the most resource-intensive function calls. Their colors are not performance-related. They are meant to differentiate between functions. Horizontally (x-axis), methods are sorted by name, not the order in which they run. Hovering a frame displays in-depth information on it. Routes Clicking on a frame narrows down the flame graph to the callers and callee nodes of that frame. Routes

​
Table view

The table view displays a list of all the frames sorted by their resource consumption, for the selected dimension and time frame. By default, the table is sorted by exclusive resource consumption, which is the total value of the frame, minus the combined total values of its direct children. Routes
Last modified on March 12, 2026
